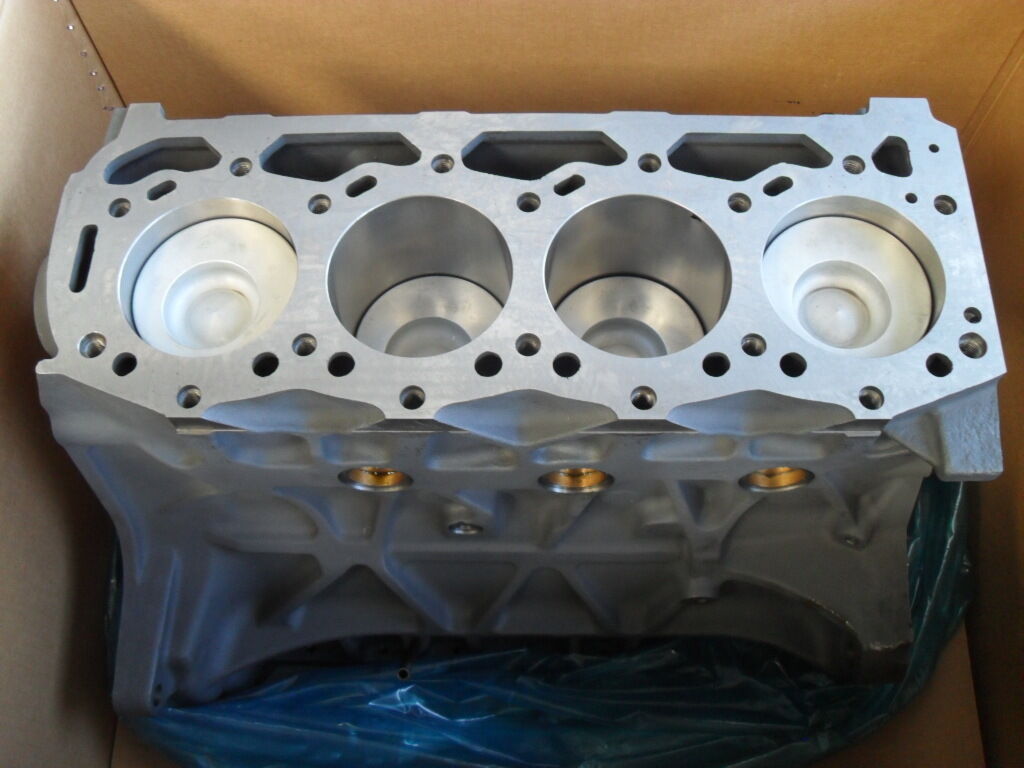

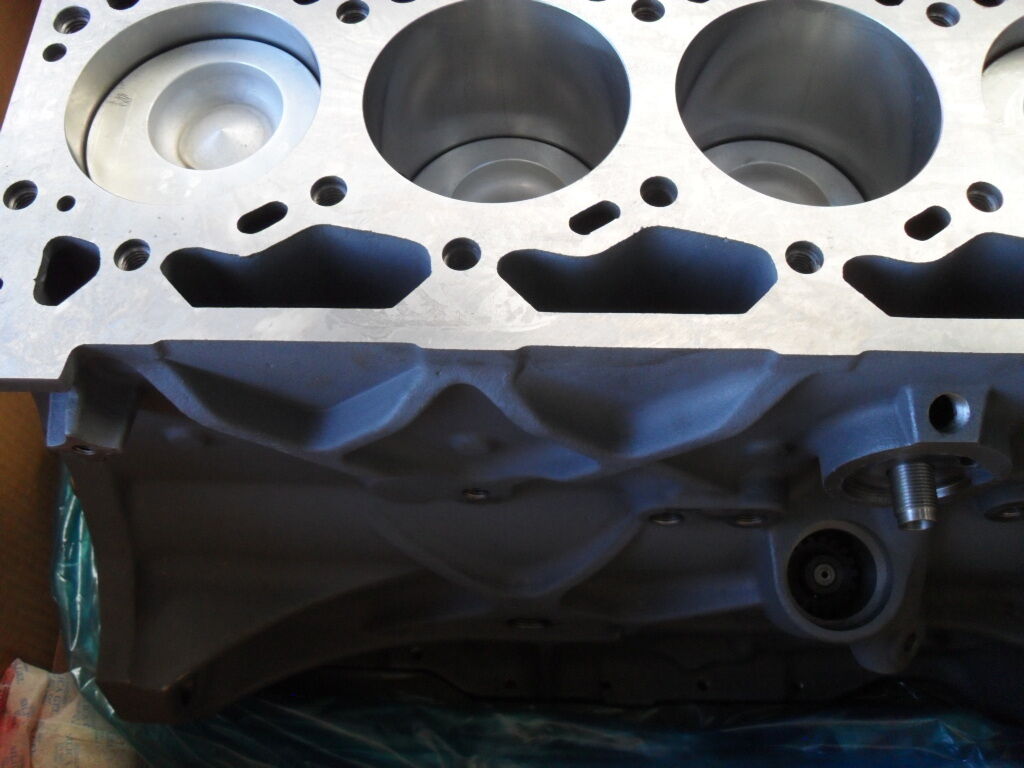

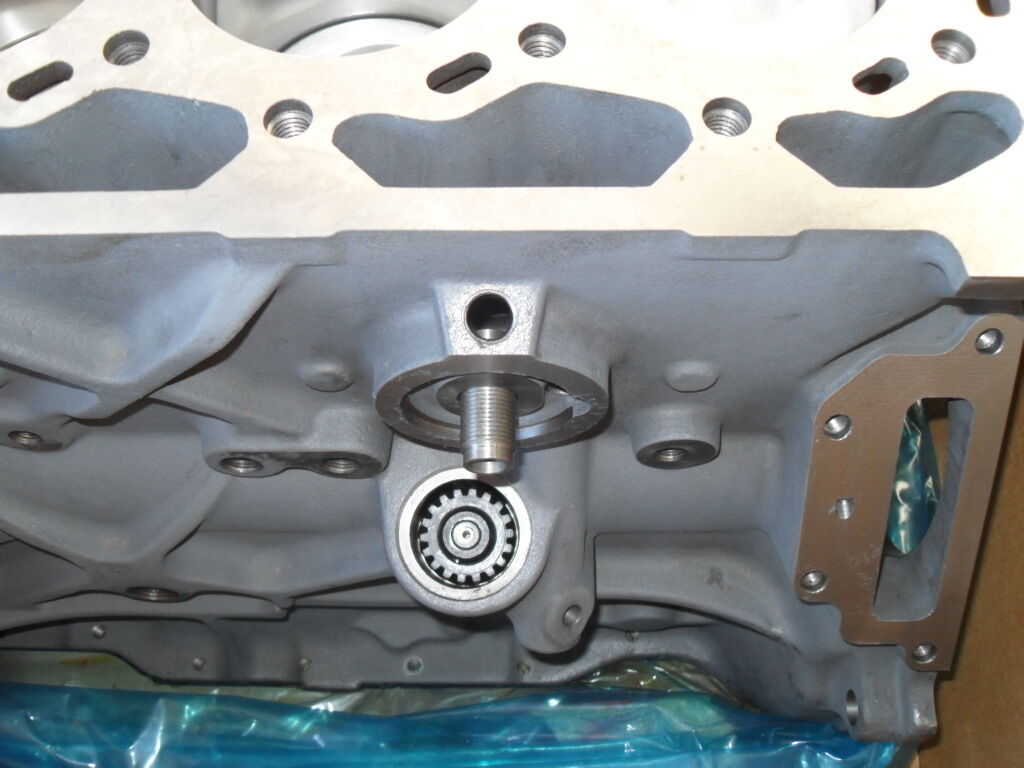

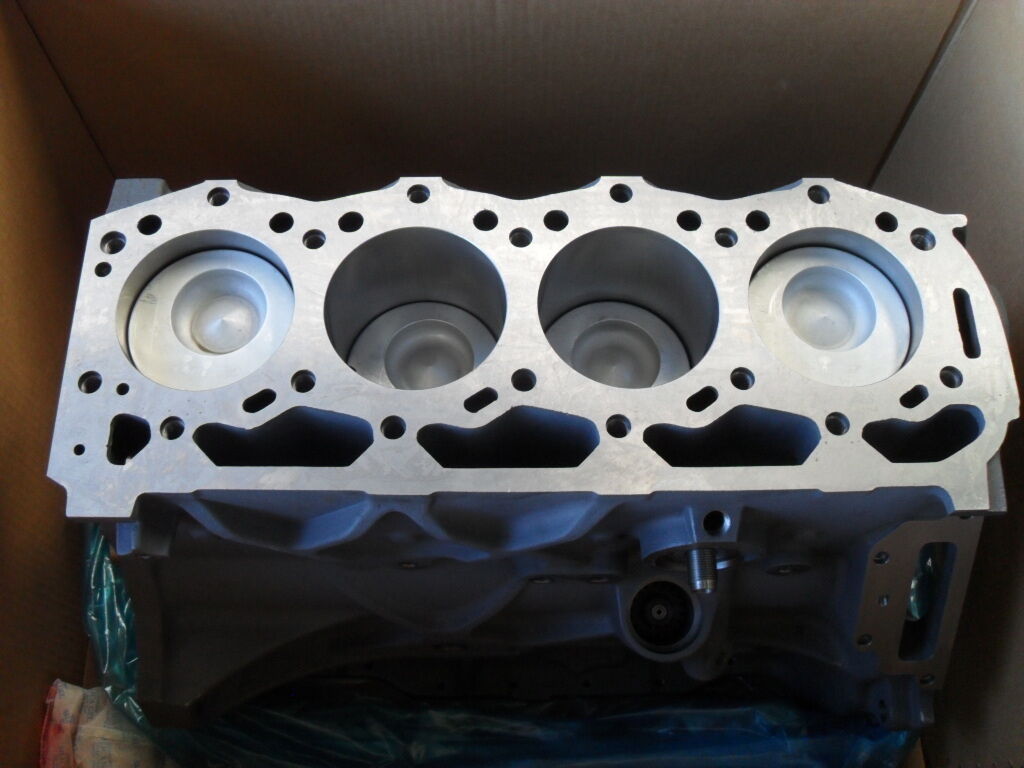

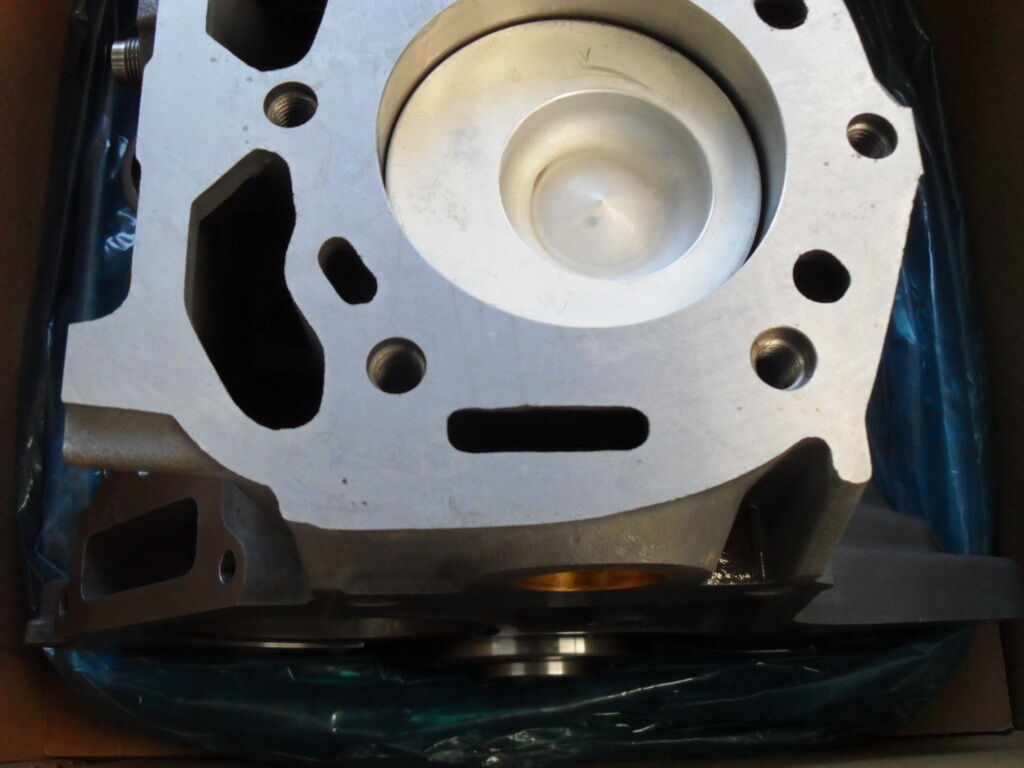

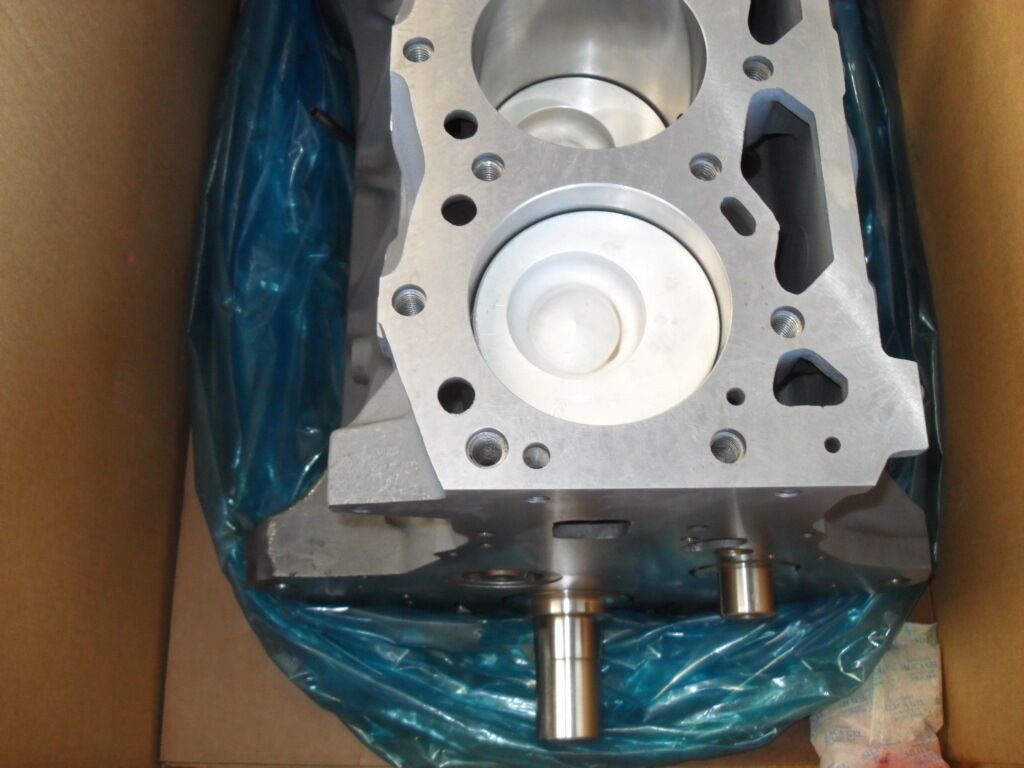

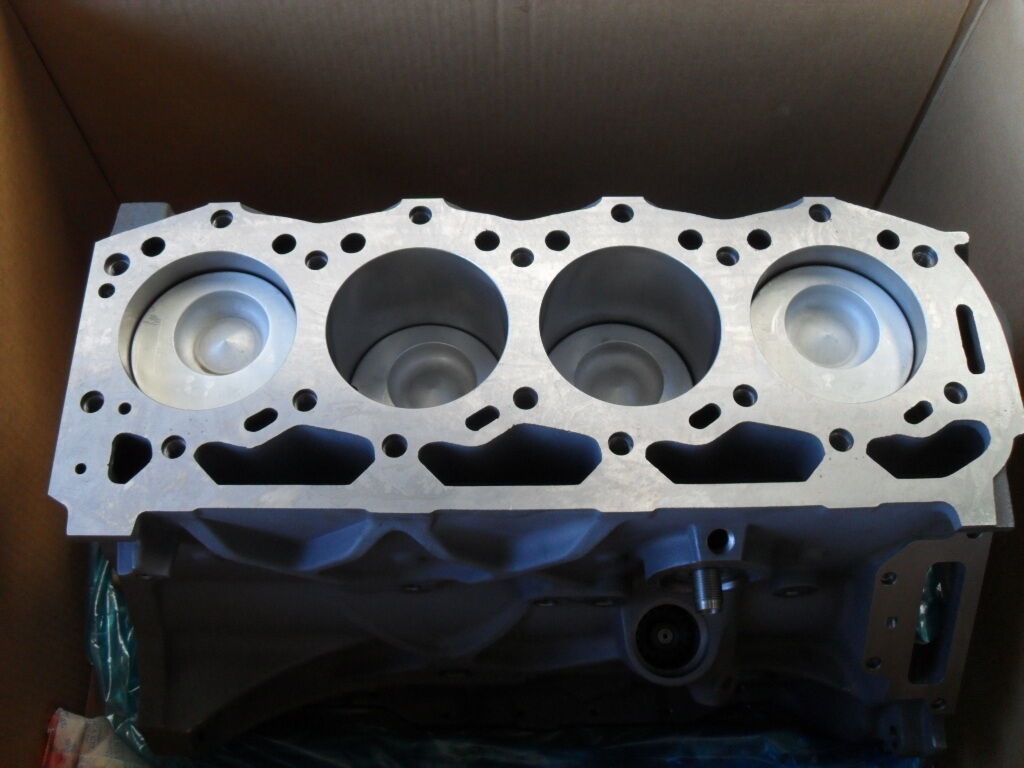

Ford 7600/7700/6810/7610/7710 Engine Short Motor – NEW – 12 Month Warranty
The Short Motors are built in the U.K. by our engineers who ensure all critical measurements are checked at every stage of the build process.
The all new block is manufactured exclusively for Vapormatic, using the very latest “lost-foam” casting technique. 21st century foundry processes and the metallurgical specification deliver a high degree of accuracy and an excellent surface finish, both internally and externally.
Product information & Technical specification:
• Engine Type: BSD444T
• Bore: 111.778mm
• Stroke: 111.778mm
• Cylinders: 4
• Type: Turbo
• Crankshaft type: 76 teeth, 15.4mm balancer gear
• Balancer type: 15.4mm gear VPD1614 & VPD1615
• Cylinder head bolt size: 9/16” UNC
Typical applications:
• Direct replacement, BSD444T: 7600, 7700, 6810, 7610, 7710
• Also replaces, BSD442T: 7000, 7600
Earlier specification engines with ½” UNC thread cylinder head bolts will also require cylinder head bolt kit VPA3924 and VPA5083 timing cover kit bolt kits to complete installation of the New Short Motor. …You will need the following additional items:
• Cylinder head gasket: VPA4303
• Cylinder head gasket set: VPA4103
• Bottom gasket set: VPC6106
• Does not include rear seal housing
• Other items may also be needed dependant on history of machine - please contact us
Compatible with:
Ford New Holland - Agricultural tractor
6810 - Ford New Holland (Engine - BSD444T)
7600 - Ford New Holland (Engine - BSD442T)
7610 - Ford New Holland (Engine - BSD444T)
7700 - Ford New Holland (Engine - BSD442T)
7710 - Ford New Holland (Engine - BSD444T)
CROSS REFERENCES
Ford New HollandE6NN6009AGC
