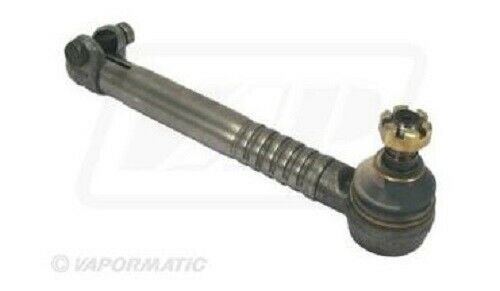

CASE IH 4wd Steering End APL325, APL330, APL335

Working length	243 mm
Thread type - end side (wheel)	Metric
Thread type - rod side	Metric
Curved	No
Max. connection diameter	22.3 mm
Min. connection diameter	19.9 mm
Thread diameter - end side (wheel) (metric)	M18
Thread diameter - rod side	M22
Thread direction - end side (steering)	Right
Thread direction - end side (wheel)	Right
Thread direction - rod side	Right
End cone length	24 mm
Pitch of thread - end side (wheel) (mm)	1.50 mm
Thread pitch - rod side	1.50 mm

Compatible with:
Series 43 44 45
743 / 743XL
745 / 745XL
745S
844
844S
844XL
845 / 845XL
Series 56
856 / 856XL
Series 74 75 76 84 85 86 94 95
395
485 / 485XL
495 / 495XL
585 / 585XL
595 / 595XL
685 / 685XL
695 / 695XL
785 / 785XL
795 / 795XL
885 / 885XL
895 / 895XL
985 / 985XL
995 / 995XL

OE Reference - 1968464C1

This item is subject to a 2-3 working day despatch
