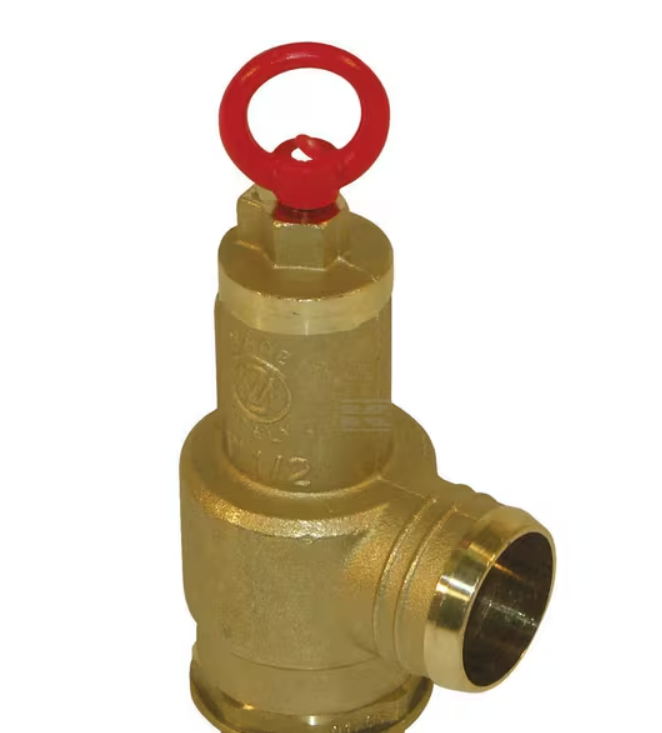

TANKER Safety Valve 1 1/2"
TANKER Safety Valve 1 1/2"
TANKER Safety Valve 1 1/2"
TANKER Safety Valve 1 1/2"

TANKER Safety Valve 1 1/2"

1.0 kg
£52.10
SKU: 0150013
1 in stock
TANKER Safety Valve 1 1/2"

Part number
0150013
EAN
Unit
Each
Brand
MZ
Long description
The MZ Valve provides easy setting and fast plumbing, ensuring a higher volume flow compared to other valves. With a low stiffness stainless-steel spring, it opens twice as much at the same pressure, delivering superior performance. The long-shaped body contains the spring perfectly, while the well-spaced hose connector guarantees a comfortable connection with the discharge tube. The upper ring is easily set with an Allen key and securely locked with an anti-rotation screw.
Show more
Product details
  • Easy Setting: Adjustable via the upper ring; secure with anti-rotation screw (requires a classic Allen key)
  • Fast Plumbing: Quick setup using the pressed sinker behind the anti-rotation screw
  • High Flow Rate: Low stiffness spring allows the MZ valve to open twice as much as other valves at the same pressure, increasing volume flow
  • Durable Design: Long-shaped body housing a stainless-steel low stiffness spring
  • Comfortable Connection: Well-spaced hose connector for easy discharge tube attachment
Collection

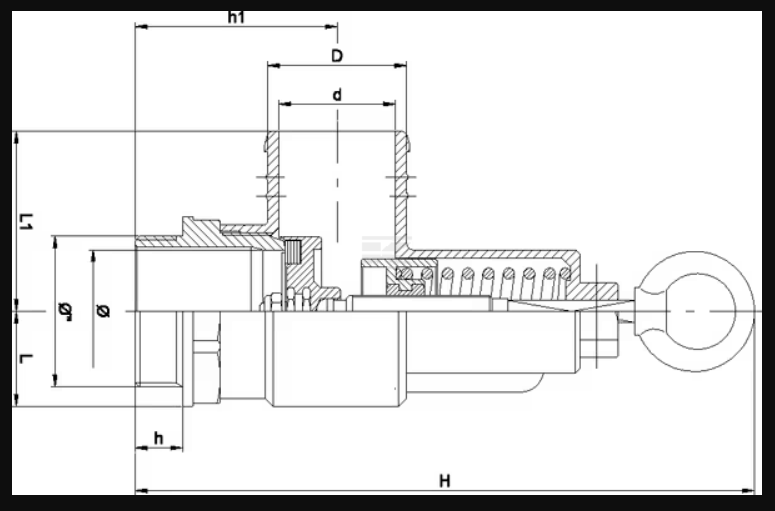

dConnection 2, diameter
37 mm
⌀Connection diameter
38 mm
⌀"Connection thread diameter
1-1/2 Inch
hConnection thread length
15 mm
Connection thread type
BSP
DDiameter hosetail mm
44 mm
Height h1
49.5 mm
Length L1
60 mm
L
30 mm
Max working pressure
1.5 BAR
Max working temperature
60 °C
Min. working pressure
0.3 BAR
Min working temperature
-15 °C
HTotal height
195 mm
L1 LTotal length
90 mm
Weight
1.02 kg


Gwynedd Farm Machinery Part No 0150013 (Please quote when contacting us)
